Motor：75HP/100HP
Applicable material：brass, aluminium, steel and alloy bar
Applicable size：Ø20~75mm/50mm
Working range：7~20%
Applications and features：

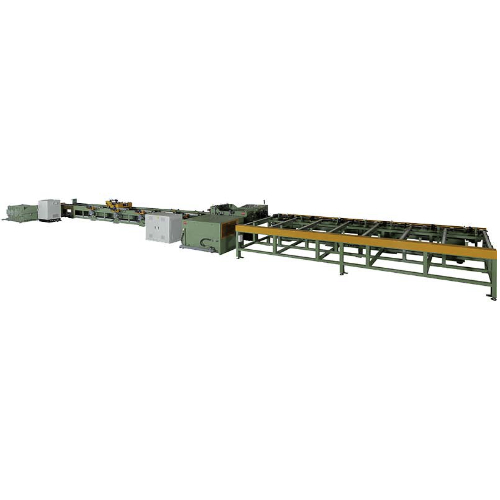

1. Seesaw-type drawbench with the chain-driven carriage to pull out the rolled or extruded tubes for better precision.
2. Equipped with push pointer for pointing process, substituting lathing or shrinking the end of bar process before the cold drawing.
3. Cold drawn materials improve the hardness, yield and tensile strength of the material.
4. Option to combine length cutting or straightening processes after cold drawing for better production efficiency.
5. Pulling force, speed, and drawing length could be custom-made according to the practical process deriving from the material composition.
Relevant working processes：Extrusion, sand-blasting, pickling, coating, heat treatment, cutting, straightening.
An automatic cold drawing machine is a highly advanced and sophisticated piece of equipment that is specifically designed to draw and shape metal wire or tube into a desired shape and size. This process is achieved by feeding the material through a series of dies that compress the metal and shape it to a specific size and shape. The cold-drawing process is conducted at a controlled temperature and without the use of heat, ensuring the material's mechanical properties remain intact.
At HOREN, we have continuously improved and innovated our automatic cold drawing machines to meet the industry's ever-changing demands. Our machines are highly efficient and accurate, with a wide range of customization options available to cater to our clients' specific needs. Our machines are suitable for use in various industries such as aerospace, automotive, and construction, where precision, durability, and efficiency are paramount.
Furthermore, our automatic cold drawing machines are equipped with advanced features such as automatic lubrication systems, vibration reduction mechanisms, and real-time monitoring systems to ensure seamless production, significantly reducing downtime due to maintenance and repairs. Additionally, our machines are designed with user-friendliness in mind, enabling operators to easily adjust the settings and perform routine maintenance tasks without specialized technical knowledge.
In summary, HOREN's automatic cold drawing machines are the perfect solution for businesses looking to enhance their production processes while maintaining a high level of precision, efficiency, and quality.
