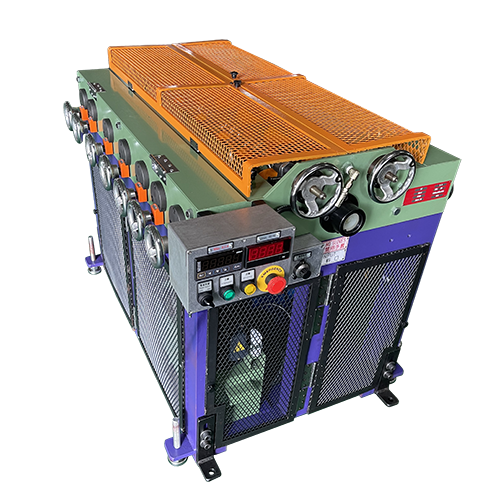

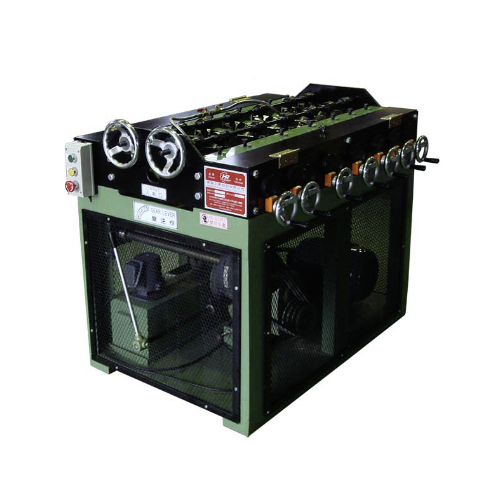

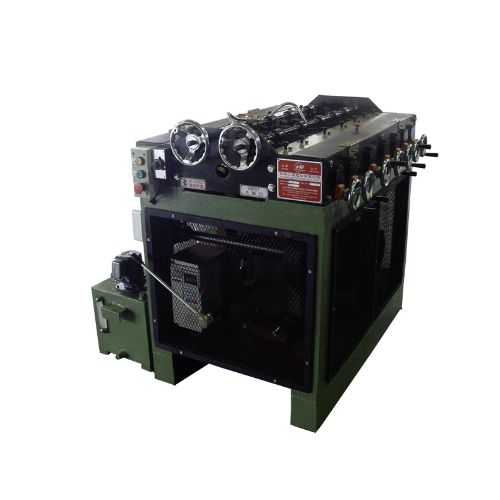

Shaft Straightening Machine-ST0314

Motor：3HP
Roller configuration：Ø68 x 76L
Applicable material：brass, aluminium, steel, special alloy tube and wire
Applicable size：Ø5~15mm
Target range：Straightness ≦0.30mm/M

Applications and features：

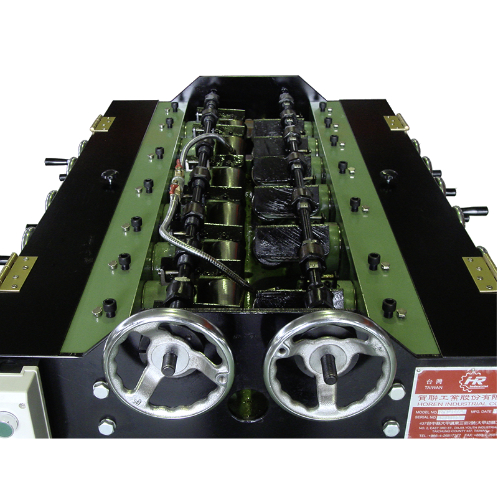

1. Horizontal layout design with zigzag arrangement to press the materials for straightening through multi-rollers.

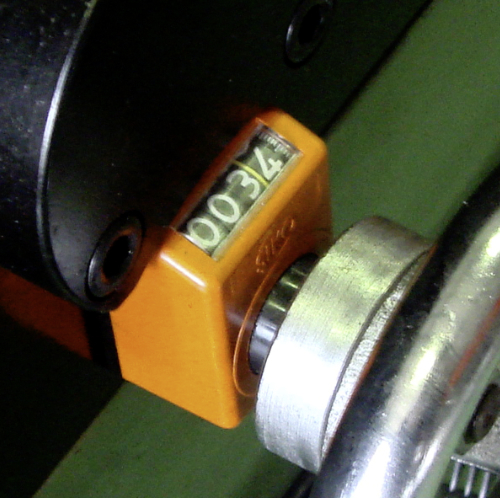

2. All rollers are equipped with distance scale gauges for recording at ease.
3. Machine equipped with inverter for the speed adjustment that is required for each different composition of the material.
Relevant working processes：Cold drawing, bending, lathing, cutting, packaging.

A straightening machine works by leveraging hydraulic force to effectively straighten a wide range of metal materials, ranging from rods, bars, tubes, to wires. The process involves clamping the metal material securely in place between two opposing rollers. Then, they put pressure on the material until it is bent in the opposite direction of the original bend, thus straightening it. The hydraulic force can be adjusted based on the thickness and hardness of the metal material to ensure accurate and efficient straightening.

The straightening machine is equipped with advanced sensors that provide real-time feedback during the straightening process, ensuring that the metal material is properly aligned throughout the process. Additionally, the machine is designed to be highly versatile, with the ability to straighten metal materials with varying diameters, lengths, and thicknesses.

Furthermore, HOREN's straightening machine leverages cutting-edge technology to reduce any potential damage or deformation that may occur during the straightening process. This results in a high-quality finish that meets the stringent requirements of various industries, such as construction, automotive, and aerospace.
