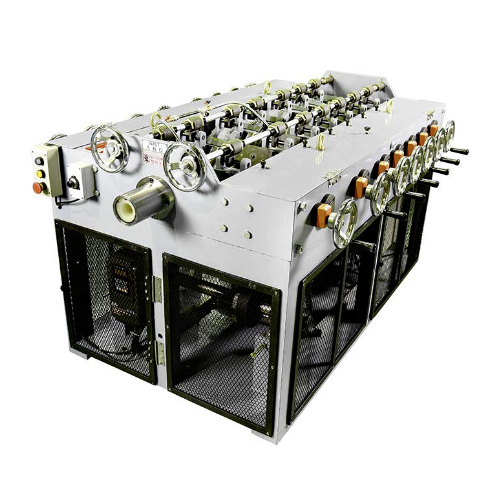

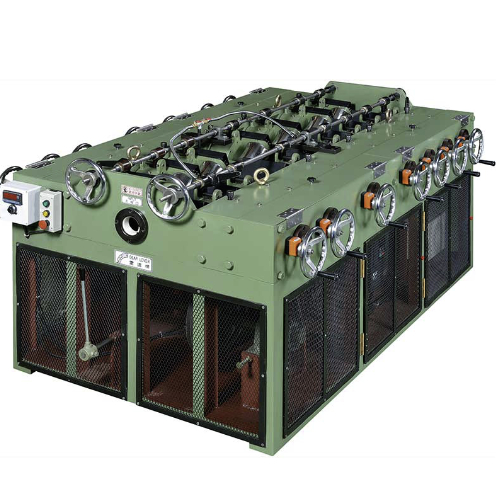

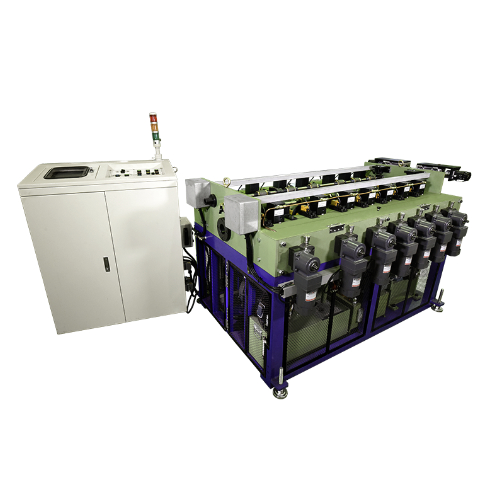

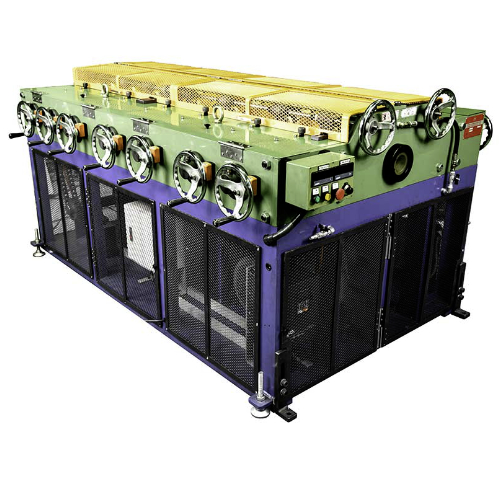

Shaft Straightening Machine- ST0514N

Model ID：ST0514N

Welcome to HOREN, the industry leader in Tube Straightening Machines. Our advanced machines offer exact straightening for tubes and rods, ensuring exceptional performance. With a powerful 5HP motor, roller configuration of Ø88 x 100L, and the ability to handle various materials, including brass, aluminum, steel, and special alloy, our machines are in a league of their own. Sizes ranging from Ø10 to 30mm are easily accommodated, with straightness targets of ≤0.30mm/M.

Our machines have a unique horizontal design with a zigzag arrangement, allowing for effective material pressing through multi-rollers. Each roller includes distance scale gauges for convenient recording and monitoring. The inverter-equipped machine enables speed adjustment based on the material, ensuring optimal results. Connect our machines to loading, feeding, and collecting machines for seamless automation.

With our digital control model, operators can easily access records and references, facilitating precise adjustment of roller settings through an intuitive interface. Our machines are versatile, perfect for cold drawing, bending, lathing, cutting, and packaging processes.

Choose HOREN as your trusted partner for tube straightening solutions and enjoy the benefits of our cutting-edge technology, reliability, and commitment to customer satisfaction.

PREV NEXT

Motor：5HP
Roller configuration：Ø88 x 100L
Applicable material：brass, aluminium, steel, special alloy tube and rod
Applicable size：Ø10~30mm
Target range：Straightness ≦0.30mm/M

Applications and features：
1. Horizontal layout design with zigzag arrangement to press the materials for straightening through multi-rollers.
2. All rollers are equipped with distance scale gauges for recording at ease.
3. Machine equipped with inverter for the speed adjustment that is required for each different composition of the material.
4. Automatic operation is available by connecting to the loading, feeding and collecting machines.
5. Digital control model provides the operator records and references that help to adjust the rollers required for straightening through an interface.
Relevant working processes：Cold drawing, bending, lathing, cutting, packaging.

A straightening machine works by leveraging hydraulic force to effectively straighten a wide range of metal materials, ranging from rods, bars, tubes, to wires. The process involves clamping the metal material securely in place between two opposing rollers. Then, they put pressure on the material until it is bent in the opposite direction of the original bend, thus straightening it. The hydraulic force can be adjusted based on the thickness and hardness of the metal material to ensure accurate and efficient straightening.

The straightening machine is equipped with advanced sensors that provide real-time feedback during the straightening process, ensuring that the metal material is properly aligned throughout the process. Additionally, the machine is designed to be highly versatile, with the ability to straighten metal materials with varying diameters, lengths, and thicknesses.

Furthermore, HOREN's straightening machine leverages cutting-edge technology to reduce any potential damage or deformation that may occur during the straightening process. This results in a high-quality finish that meets the stringent requirements of various industries, such as construction, automotive, and aerospace.
